Functionality: fully functional
Location: Oberpöllnitzer Straße 8, 07819 Triptis, Deutschland
Chassis: semi-trailer, general haulage
Note: rear corner clearance / swing radius approx. 1930 mm
Axle 1: auto lift axle, forced lowering, traction assist via "3x brake pedal" (active up to 30% axle overload, max. 25 km/h)
Caution: tow only with tractor units ensuring ABS effectiveness!
Reflective strips: white, continuous along bottom of side curtains, top corners (with side boards fitted: strip at bottom, on boards)
axle configuration: 3 axles
colour: silver
Fine-grain steel welded frame
fifth-wheel plate with replaceable 2" kingpin
Slightly tapered outer frame
new design
"Load-Lock-Profil" for strap lashing

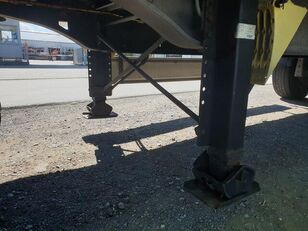

24t 2-speed landing legs
single-side operation
straight foot
no shift compensation
Rear pull-out ladder
2 side door retainers
2 wheel chocks with holder
Aluminium side impact protection
Galvanised steel rear underrun protection
Quarter-shell mudguards front/rear of axle unit
EC anti-spray flaps on 3rd axle
Rear corner impact protection
1 lockable plastic toolbox
600x425x460 mm
# Axles & Suspension
3x BPW drum brake axles
Axle/chassis laser-aligned - lower tyre wear & fuel use
# Braking System
2-line air brake system
Colour-coded lines for easy servicing
Spring-loaded parking brake
2 mismatch-proof coupling heads
front
no hose
24V EBS with front socket
no cable
Raise & lower valve
Vehicle stability system
# Wheels & Tyres
385/65 R22.5"
Steel wheels
factory silver
# Electrics
24V multi-chamber lamps
yellow LED side markers
2 white LED front position lamps
2 white/red outline marker lights
rear
2x 7-pin mismatch-proof front sockets
no cable
# Floor
Screen-printed plywood approx. 30 mm
longitudinal bearers
forklift axle load up to 7,100 kg
# Front Wall / Front Corner Posts
2,580 mm high
box-section steel corner posts
front curtain release
"Crash-Blocker"
steel impact guard approx. 140 mm high
lower inside
# Centre Posts
3 pairs sliding posts
full-length adjustable
4 insertion pockets + long bottom pocket (bottom pocket omitted with side boards)
3 pairs of post positions
# Insertion Slats
5 rows of aluminium insertion slats
# Rear Wall / Rear Corner Posts
Djbyrezzkrde Tl Dnjkt
Steel rear corner posts to roof edge
curtain fixing with round tube & tensioning ratchet
2-leaf rear barn doors
each with 2 internal rod locks
# Curtain
Curtain with welded-in horizontal/vertical straps
Stainless steel tensioning locks
# Roof
rear bow lifts up
curtain slides rear-to-front
L-section roof rail (automotive-grade)
internal width approx. 2,490 mm
white curtain
Non-elastic roof
minimal roof rail deflection when loading
Optimised rain channel at rear
above doors on end bow
# Operating Notes
When forming a combination
observe the legal max. overall vehicle height!
If overall height exceeds 4,000 mm
note the following
The haulier is liable for any damage incurred
We accept no liability for vehicle delivery/transfer
# Country of Registration / Plates
Germany
DEKRA inspection & report (per §13 EC-FGV)
24/7 service hotline
Fliegl body-strength certificate to EN 12642 XL (payload up to 27,000 kg)
Prepared for single-row plate holder
Warning plate per ECE-70
Reflective strips: red
all around rear doors
